Features:

Small Form Factor 2X5 Pin Package

Duplex LC Connector,

1310nm FP-LD Multi-Mode Transceiver

Driving up to 2km for Multi-Mode Optical Fiber

Compliant with ITU-T G. 957/958

Single +3.3V Power Supply, LVPECL Data Interface

Compliant with Telcordia GR-468-CORE

Class 1/1M Laser Product, Compliant with IEC825, FDA21 CFR1040.10 and CFR1040.11

Excellent EMI & ESD Protection

Applications:

SDH STM-1

SONET OC-03

Fast Ethernet

ATM and Other Optical Data Transmission

Description:

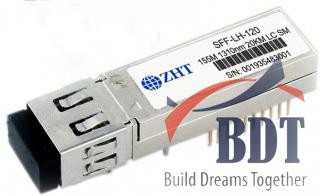

SFF Transceiver is a high performance, cost effective module for serial telecom and datacom applications, all versions are compliant with SONET/SDH recommendations from OC-03 specifications. This module is designed for Single-Mode fiber and operates at the wavelength of 1310 nm. The transmitter section incorporates FP-LD and driver IC with temperature compensation and automatic power control circuit. The receiver section incorporates an efficient InGaAs/InP PIN photodiode and transimpedance with AGC for wide dynamic range. A LVPECL data interface simplifies interface to external circuitry. It is packaged in a small form factor multisourced 2X5 pin metal housing for excellent EMI shielding. The transceiver has excellent immunity and reliability.
Odering Information
